DN500
500w rated power with 80 PLUS® 230V EU certified — up to 85% efficiency
![](https://cdn.deepcool.com/public/ProductFile/DEEPCOOL/PowerSupplyUnits/DN500/Overview/01.png?fm=webp&q=60)
![](https://cdn.deepcool.com/public/Design/L3Banner/CPULiquidCooler/CASTLE_360EX_WH/02_00.png?fm=webp&q=60)
DESCRIPTION
DN 500 is certified to 80 PLUS® 230V EU, achieving up to 85% electrical efficiency, lowering heat generation and reducing operational costs. The PSU is designed to have < 1W power consumption under off-mode, and is therefore compliant to the Effective Radiated Power (ErP) standard. Outstanding and stable performance of this PSU makes it one of the best choices for a wide range of applications.
![](https://www.deepcool.com/ProductPic/ProductPic/NewPic/DN500%20new%20version/DN500_01.jpg?fm=webp&q=60)

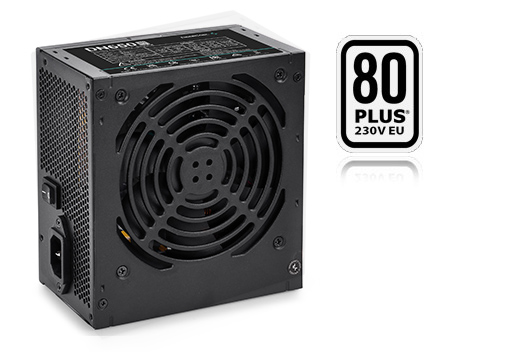

80 PLUS® 230V EU
80 PLUS® 230V EU certified provides a high energy efficiency of up to 85%. Click here to view the certification.
![](https://www.deepcool.com/ProductPic/ProductPic/NewPic/DN500%20new%20version/DN500_02.jpg?fm=webp&q=60)

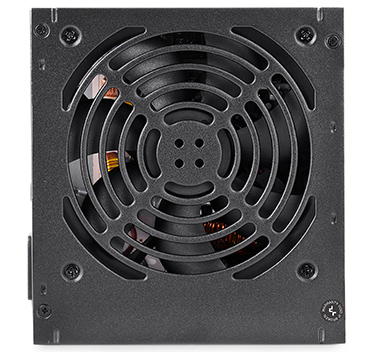

Silent, High Performance Fan
120 mm silent fan with temperature control that provides an incredible performance-to-noise ratio.
![](https://www.deepcool.com/ProductPic/ProductPic/NewPic/DN500%20new%20version/DN500_04.jpg?fm=webp&q=60)
![](https://www.deepcool.com/ProductPic/ProductPic/NewPic/DN500%20new%20version/DN500_03.jpg?fm=webp&q=60)
![](https://www.deepcool.com/ProductPic/ProductPic/NewPic/DN500%20new%20version/DN500_05.jpg?fm=webp&q=60)
Longer Cable Design
Longer cable design for enhancing cable management.
![](https://www.deepcool.com/ProductPic/ProductPic/NewPic/DN500%20new%20version/DN500_06.jpg?fm=webp&q=60)
Certification and Support
![](https://cdn.deepcool.com/public/ProductGallery/DEEPCOOL/PowerSupplyUnits/DN550_new_version/Design/DN550_07.jpg?fm=webp&q=60)
![](https://cdn.deepcool.com/public/ProductFile/DEEPCOOL/PowerSupplyUnits/DN500/Overview/04_01.jpg?fm=webp&q=60)
Main Power Connector (20+4)Pin x 1
X1
![](https://cdn.deepcool.com/public/ProductFile/DEEPCOOL/PowerSupplyUnits/DN500/Overview/04_02.jpg?fm=webp&q=60)
CPU(4+4)Pin x 1
X1
![](https://cdn.deepcool.com/public/ProductFile/DEEPCOOL/PowerSupplyUnits/DN500/Overview/04_03.jpg?fm=webp&q=60)
PCI-E(6+2)Pin x 2
X1
![](https://cdn.deepcool.com/public/ProductFile/DEEPCOOL/PowerSupplyUnits/DN500/Overview/04_04.jpg?fm=webp&q=60)
SATAx3+4pin Peripheralx1
X1
![](https://cdn.deepcool.com/public/ProductFile/DEEPCOOL/PowerSupplyUnits/DN500/Overview/04_05.jpg?fm=webp&q=60)
4pin Peripheralx2+ SATAx2
X1
Technical Spec
Model | DN500 |
Type | ATX 12V V2.4 |
Dimension | 150×140×86mm (W x L x H) |
Output Capacity | 500W |
Input Voltage | 200-240V |
Input Current | 4A |
Input Frequency Range | 47~63Hz |
Fan Size | 120mm |
PFC | Active PFC (>0.99) |
Power Good Signal | 100-500ms |
